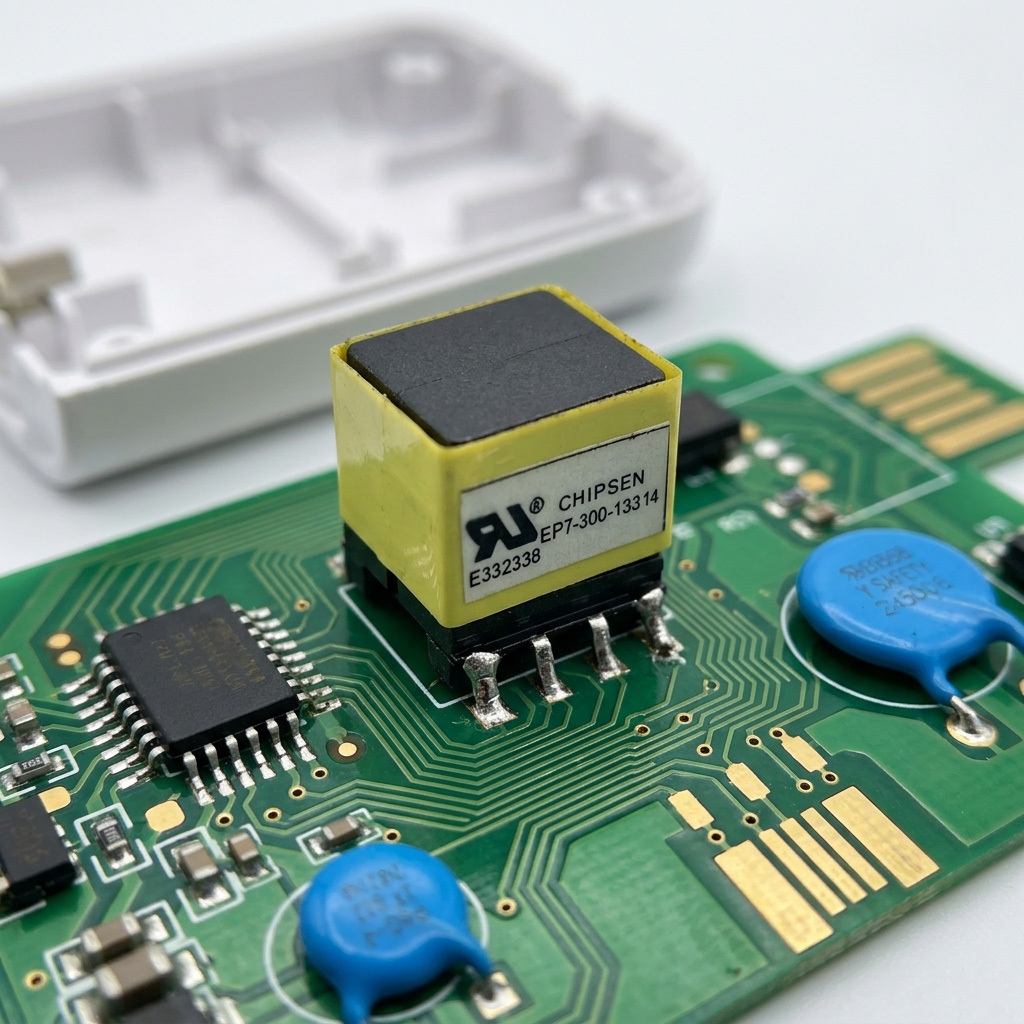

EP7 Mini SMPS Pulse Transformer Excellent EMI Shielding Custom SMD PCB Mount

The EP7 Series High-Frequency Transformer is a high-precision magnetic component designed around the specialized EP7 ferrite core. Featuring a unique cubical geometry with a cylindrical center limb, this transformer is engineered to provide a robust solution for power and signal management in modern, high-density electronic environments. Its "capsule-like" architecture allows it to deliver superior performance in a miniature form factor, making it an essential component for high-end electronic applications.

• Optimized Geometry: The cubical shape provides an excellent volume-to-surface-area ratio, maximizing magnetic efficiency within a minimal footprint.
• High-Frequency Range: Optimized for high-frequency operation, typically ranging from 100kHz up to 1MHz, supporting modern high-speed switching topologies.
• Precision Winding: The round center post facilitates uniform winding distribution, reducing mechanical stress on the copper wire and ensuring highly consistent electrical parameters.
• Versatile Mounting: Available in both Surface Mount (SMD) and Through-Hole (THT) configurations to suit various PCB assembly processes.
• Material Quality: Constructed with premium PC40/PC44/PC95 ferrite materials, offering low core loss and high magnetic permeability.

• Telecommunications: A standard choice for xDSL modems, ISDN routers, and wideband signal transmission due to its excellent signal integrity.
• Signal Isolation: Widely used as a pulse transformer or gate drive transformer (GDT) for driving MOSFETs and IGBTs in power converters.
• Compact Power Supplies: Ideal for low-power DC-DC converters (typically 1W to 5W) in smart home devices, sensors, and IoT modules.
• Medical & Precision Instruments: Used in sensitive analog circuits where low noise and high reliability are critical requirements.

• Superior EMI Shielding: The unique self-shielding design effectively encloses the windings, significantly minimizing magnetic leakage and electromagnetic interference (EMI) compared to traditional E-core transformers.
• Extreme Space Efficiency: Its vertical-oriented cubical structure occupies minimal PCB real estate, allowing for higher component density on the board.
• Excellent Thermal Stability: The high-quality insulation and core material ensure stable performance across a broad temperature range (typically -40°C to +125°C).
• High Consistency: The standardized mechanical structure ensures that electrical parameters like leakage inductance and stray capacitance remain consistent across large production batches, reducing the need for circuit recalibration.
